Thyristor TFI393-2500
Thyristors
| VDRM/VRRM [V min]: | 2400 |
| VDRM/VRRM [V max]: | 2800 |
| ITAV [A]: | 2500 |
| Tс: | 93 |
| VTM (Tc=25°С) [V]: | 2.15 |
| ITM (Tc=25°С) [A]: | 6300 |
| tq [μs]: | 50.0 |
| Tjmax [°С]: | 125 |
| Rthjc [°С/W]: | 0.0060 |
| Package: | T.G6 |

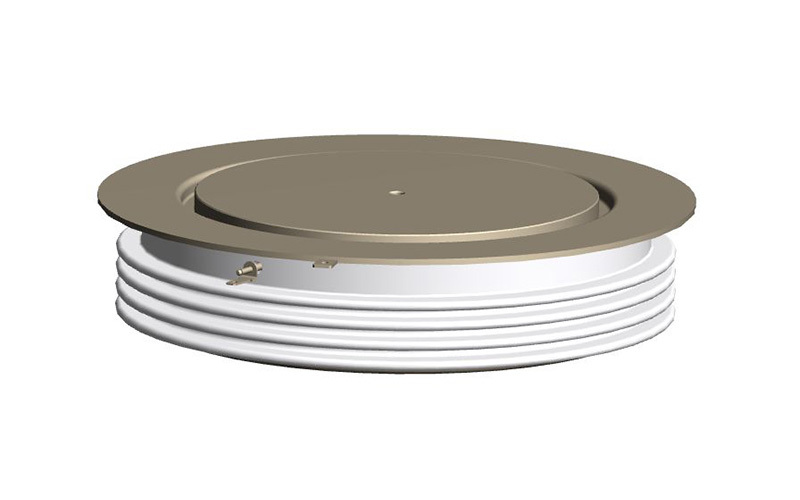

| Design: | disc |
| Type: | fast |
- Documents and certificates
- Datasheet Thyristor TFI393-2500
- Description
Fast impulse thyristor. Low dynamic losses. Industry standard housing.
Features:
- Short turn on and turn off times.
- Low reverse recovery charge.
- Capable of switching current impulses with high rate of rise di/dt
- Capable of blocking voltage with high rate of rise du/dt. - Applications
Used in converters for thyristor frequency-controlled electric drives and other converters for increased frequencies (up to 10 kHz)
