IGBT MIRA-IRB12LA-150N
IGBT modules
| VCES [V]: | 1200 |
| ICnom [A]: | 150 |
| Chip technology: | Trench-FS |

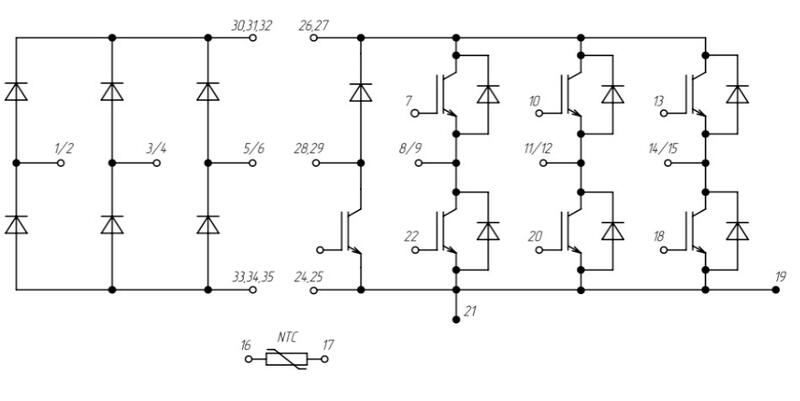

| Configuration: | Inverter, rectifier, brake chopper |
| Qualification: | Industrial |
| Housing (width/length) [mm]: |
MIRA (62/122) |
| Сonfirmation of production (719 Decree) : | Entered into the register |
- Documents and certificates
- Datasheet IGBT MIRA-IRB12LA-150N
- Description

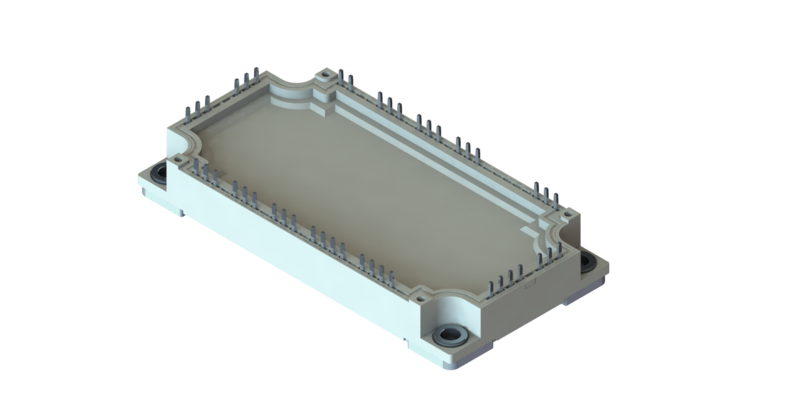

Low Inductance IGBT Module MIRA-IRB12LA-150N with 17 mm Height Housing. IGBT module with blocking voltage 1200V and current 150A. IGBT MIRA-IRB12LA-150N has copper baseplate, improved thermal cycling and integrated temperature sensor.
- Applications
Low Inductance IGBT Module MIRA-IRB12LA-150N successful used in AC motor drives, invertors and power supplies.
